Pain management · 640 nm red + 405 nm violet
FX 405 Laser
Automated four-diode laser scanner for nociceptive musculoskeletal and post-operative pain
Overview
About the FX 405 Laser
The FX 405 laser scanner offers all of the benefits of the FX 635 with the addition of violet laser for treatment versatility. Alongside the violet laser's anti-bacterial and anti-microbial properties, it produces more energy per photon; research shows the combination of violet and red lasers results in greater pain relief and enhances reactive oxygen species (ROS), which play an important role in reducing pain and inflammation.

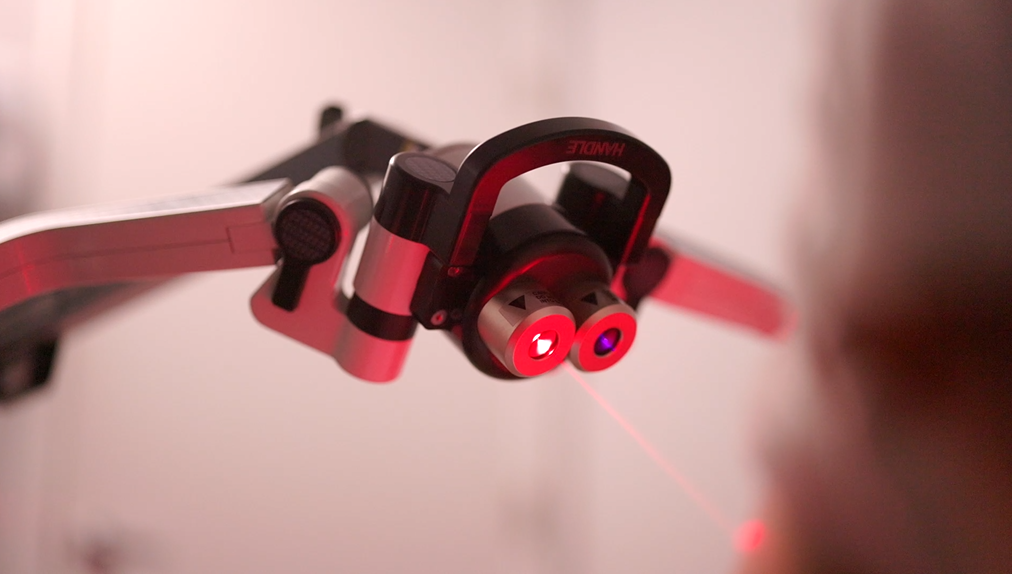

- Four Class 2 line-generating diodes on patented articulating arms
- Hands-free and automated — set up and treat other patients
- Red and violet combination for greater pain relief
- No burning, scarring or downtime; the patient stays awake throughout
Typical applications
- Nociceptive musculoskeletal pain
- Adjunctive treatment of post-operative pain

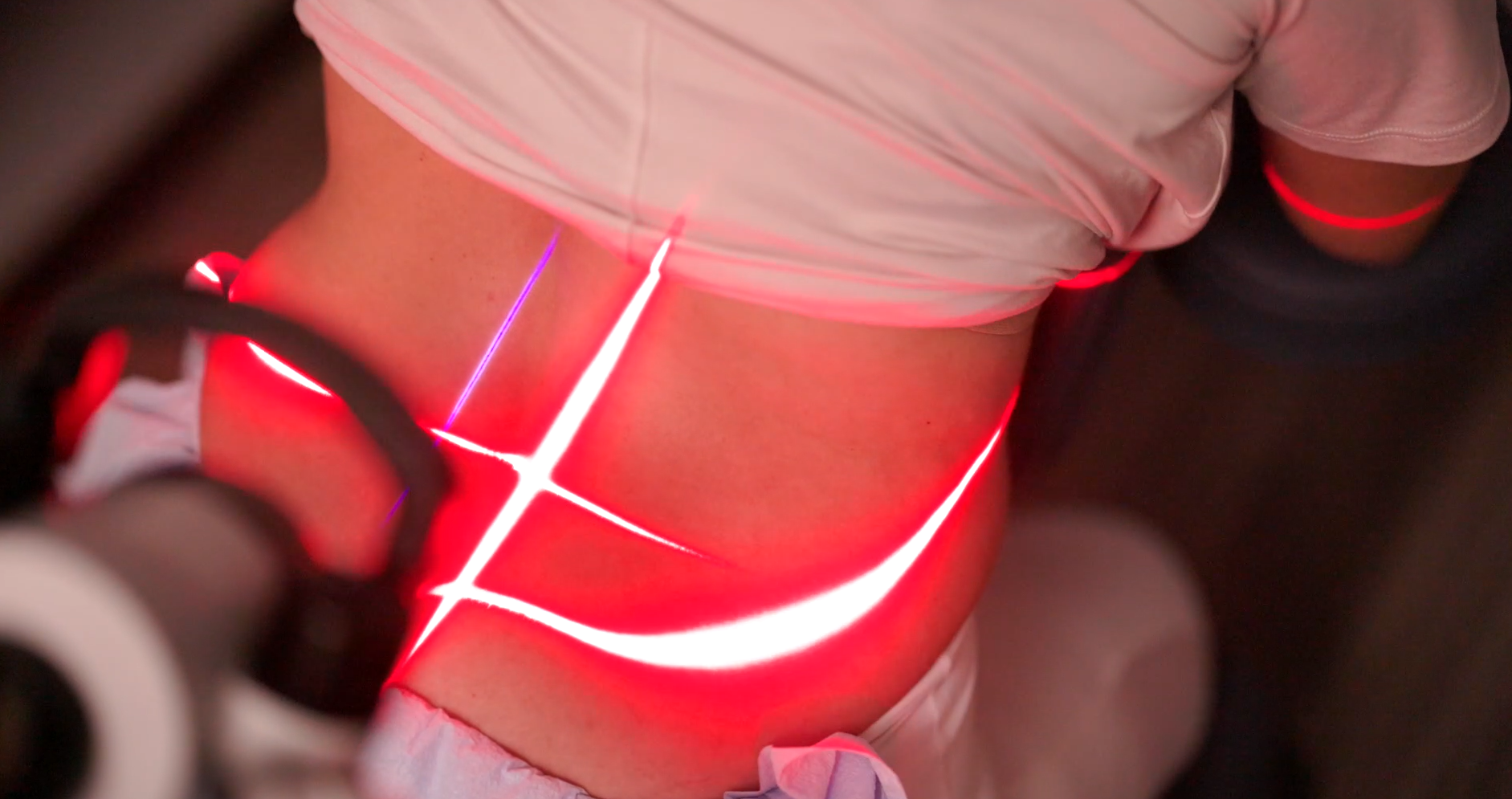

- Chronic low back pain and plantar-fasciitis style protocols
- High-volume physiotherapy, chiropractic and sports medicine practices
Product description
What the device does
The FX 405 uses low-level laser technology and patented laser diode arms to precisely target pain centres. The body absorbs the light energy, which encourages the cell's mitochondria to produce more ATP and promotes natural healing within the cell. Because the laser merely stimulates the cells to promote healing naturally, the FX 405 provides pain relief and reduces inflammation with no adverse side effects.
With its hands-free design, medical staff spend less time performing each treatment and can use that time to treat more patients — the clinician sets up the FX 405 and the device does its work.
Mechanism
How it works
Erchonia uses low-level lasers in the visible light spectrum. The primary mechanism for absorption of visible light photons is the elevation of electrons to higher energy levels — molecular excitement. In that excited state, chemical reactions occur: photons push an electron to a higher energy level where it can be picked up by an electron acceptor. The electron transport chain (ETC) uses those high-energy electrons to convert ADP into ATP, and the ETC is the primary source of ATP production in the body.
Users remain awake throughout the entire laser treatment and experience no burning, scarring or downtime, allowing them to resume the rest of their day as soon as the session is over.
FDA indications for use
Clearance K231409
- a.While using the red and violet diodes, for the adjunctive use in providing temporary relief of nociceptive musculoskeletal pain.
- b.While using the red diodes, as an adjunctive treatment of postoperative pain.
Device intended for medical professionals. Prescription use (21 CFR 801 Subpart D). Individual results may vary.
Specifications
At a glance
Configuration
(4) Class 2 line-generating diodes
Wavelengths
640 nm red & 405 nm violet
Modulation
Variable
Weight
65 lbs (29.48 kg)
Height
70 in (177.8 cm) average — adjustable
Arms
Two independent adjustable arms
Mobility
4 locking anti-static casters
Display
Full colour touch screen control
Power source
100–240 VAC 50–60 Hz
Chassis
Powder-coated aircraft aluminium
Compliance
ISO 13485, ISO 14971, IEC 60825-1, IEC 60601-1, 60601-1-2
Classification
FDA Laser Class 2 / Device Class II; EU Class IIa
Compare
How to choose the right device for your clinic
Every laser in the Erchonia portfolio is a valuable addition. This matrix compares format, wavelength and FDA-cleared indication across the range.
| Choosing the right device | |||||
|---|---|---|---|---|---|
| Collimated, monochromatic, coherent true laser | Yes | Yes | Yes | Yes | Yes |
| Non-thermal — no heat, pain or downtime | Yes | Yes | Yes | Yes | Yes |
| Short 10–30 minute treatments | Yes | Yes | Yes | Yes | Yes |
| Handheld and portable | No | Yes | Yes | No | No |
| Automated — hands-free during treatment | Yes | No | No | Yes | Yes |
| Green wavelength (520–542 nm) | Yes | Yes | No | No | No |
| Red wavelength (640 nm) | No | No | Yes | Yes | Yes |
| Violet wavelength (405 nm) | No | Yes | Yes | Yes | Yes |
| Musculoskeletal pain indication | No | Yes | Yes | Yes | No |
| Dermatological / acne indication | No | Yes | Yes | No | No |
| Body circumference reduction indication | Yes | No | No | No | No |
| Onychomycosis (clear nail growth) indication | No | No | No | No | Yes |
| Post-operative pain indication | No | No | No | Yes | No |
| FDA market cleared, ISO/IEC compliant | Yes | Yes | Yes | Yes | Yes |
